2" Chemical Transfer Pump
Category: Chemical Transfer
Pump Specifications
Height 770 mm (30.3")
Width 490 mm (19.3")
Depth 333 mm (13.1")
Est. Ship Weight 34 kg (75 lbs)
Air Inlet 13 mm (1/2")
Inlet 51 mm (2")
Outlet 51 mm (2")

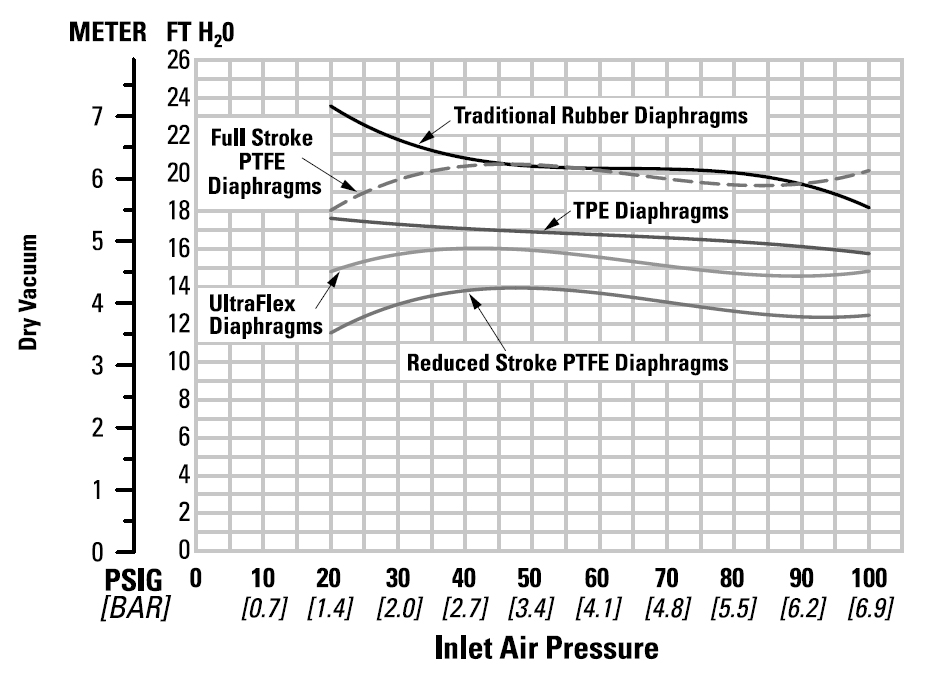

Suction Lift Dry 6.4 m (21.0')
Suction Lift Wet8.6 m (28.4')
Displacement/Stroke 0.26 L (0.69 gal.)

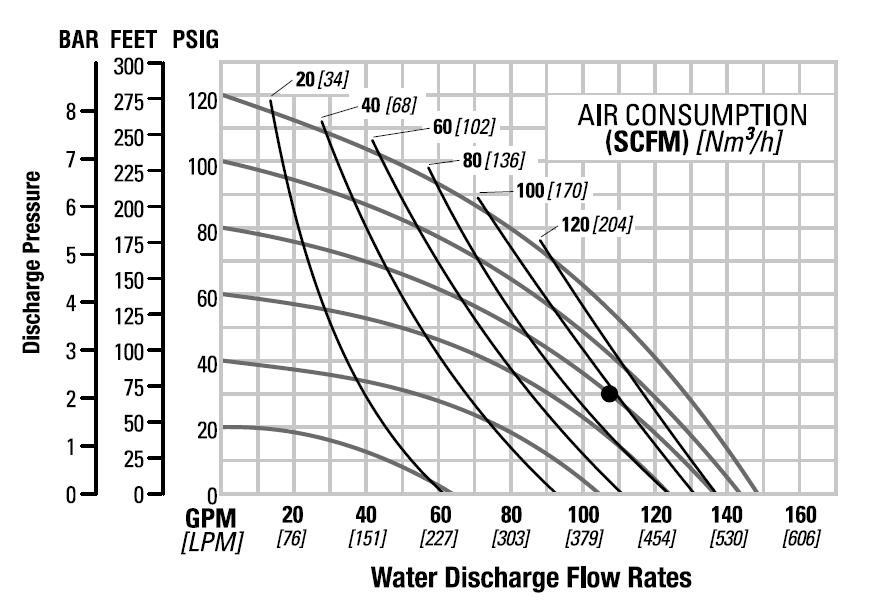

Max. Flow Rate 562 lpm (148 gpm)
Max. Size Solids 6.4 mm (1/4")

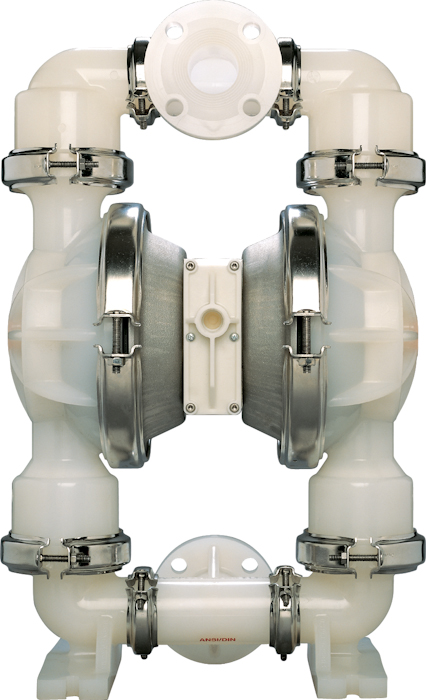

Chemical transfer diaphragm pumps are ideal for moving harsh, abrasive or chemically corrosive materials. Designed specifically for a hard life the pumps are constructed in Polypropylene and fitted with teflon elastomers to cope with all but the toughest and hardest fluids.
Design Features
- Secure clamped construction
- Trolley mountable for your ease of use
- DIN or ANSI compatible flanges
- Clamped wetted path design
- PTFE temperature limits from 4.4°C to 104.4°C (40°F to 220°F)
Performance Specifics
- Lube-free operation
- Max. flow rate is 562 lpm (148 gpm)
- Max. air pressure is 8.6 bar (125 psig)
- Max. solids passing capacity is 6.4 mm (1/4")
