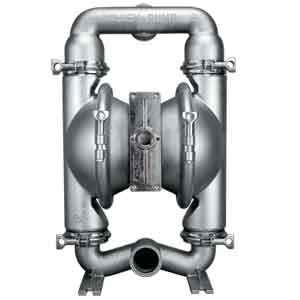

2" Inch Stainless / Viton fuel pump

Category: Special Transfer

Pump Specifications

Height 668 mm (26.3")
Width 404 mm (15.9")
Depth 343 mm (13.5")
Est. Ship Weight 53 kg (117.0 lbs)
Air Inlet 13 mm (1/2")
Inlet 51 mm (2")
Outlet 51 mm (2")
Suction Lift Dry 7.4m (24.4')
Suction Lift Wet9.3m (30.6')
Displacement/Stroke 0.26 L (0.70 gal.)
Max. Flow Rate 674 lpm (178 gpm)
Max. Size Solids 6.4 mm (1/4")

Small, lightweight or trolley mounted pumps are excellent for the movement of any hazardous, flammable or petroleum based fluid transfer as the pump itself is intrinsically safe due to it operating under pneumatic air pressure. All our petrol pumps are ATEX rated too so can be used in any situation where safety is a must.

Design Features

  • Secure clamped construction
  • Trolley mounted for your ease of use
  • Clamped wetted path design
  • Viton temperature limits from -40°C to 176.7°C (-40°F to 350°F)

Performance Specifics

  • Lube-free operation
  • Max. flow rate is 674 lpm (178 gpm)
  • Max. air pressure is 8.6 bar (125 psig)
  • Max. solids passing capacity is 6.4 mm (1/4")
  • Fully groundable for fuel duties
