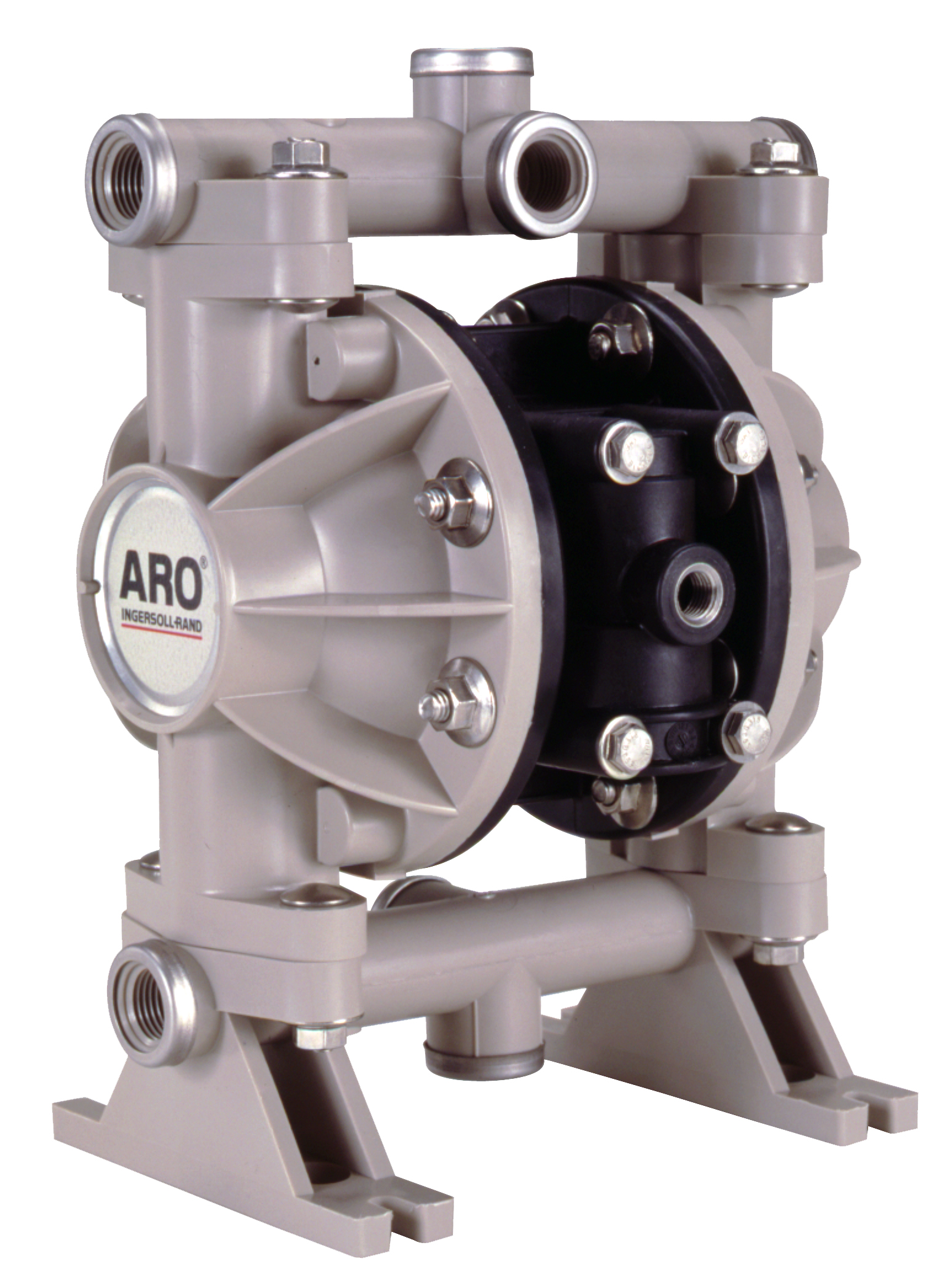

1/2" Plastic Chemical Transfer Pump

Category: Chemical Transfer

Pump Specifications

Height 288 mm (11 & 11/32")
Width 215 mm (8 & 15/32")
Depth 164 mm (6 & 7/16")
Est. Ship Weight 3.3 kg (7.2 lbs)
Air Inlet 6 mm (1/4")
Inlet 12.7 mm (1/2")
Outlet 12.7 mm (1/2")
Max. Outlet Pressure 20 - 100 psi (1 - 6.9 bar)
Displacement/Stroke 0.15 L (0.04 gal.)

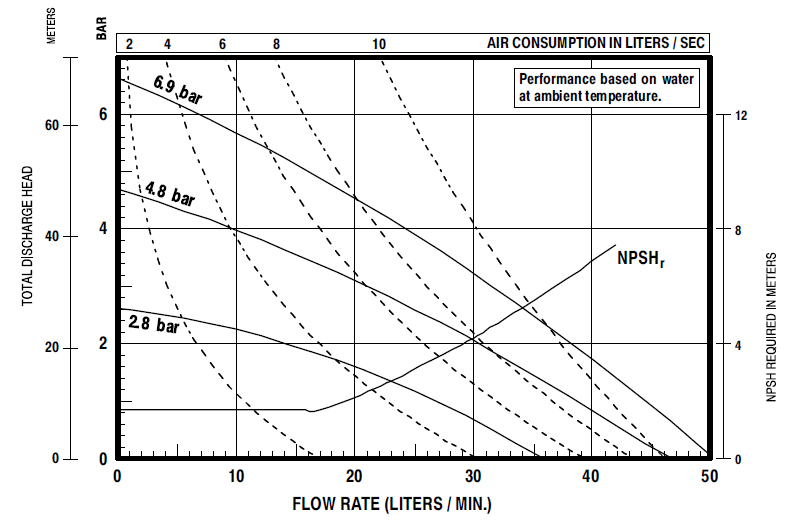

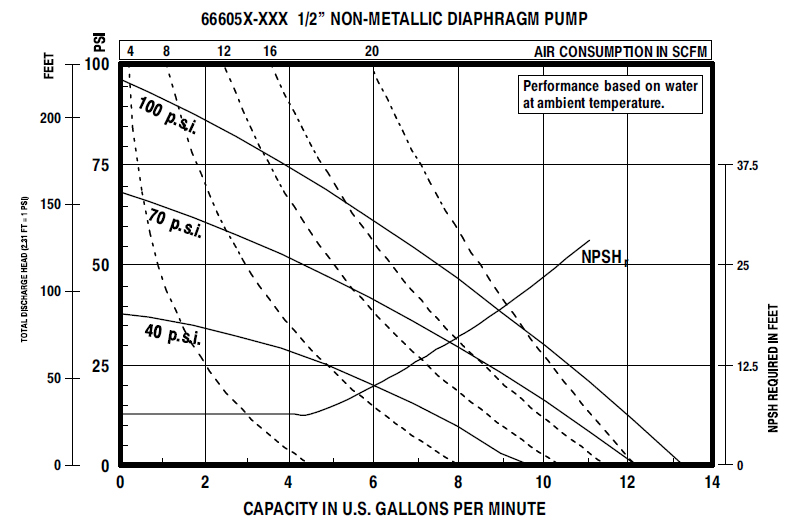

Max. Flow Rate 49.2 lpm (13 gpm)
Max. Size Solids 2.4 mm (3/32")

Fully stainless steel, chemically resistant pumps for the movement of hazardous and harmful material. These pumps are solidly constructed with over sized 316 manifolds for maximum fluid security.

Design Features

  • ARO has the world's best selling 1/2" ported diaphragm pump
  • Designed to meet your OEM application needs
  • Versatile, Center, End, Dual Inlet / Outlet, and Swivel Top manifold configurations to fit your specific application
  • Serviceability, ease of service through modular design

Performance Specifics

  • Lube-free operation
  • Max. flow rate is 49.2 lpm (13 gpm)
  • Max. air pressure is 6.9 bar (100 psig)
  • Max. solid passing is 2.4 mm (3/32")
  • Bolted constuction
