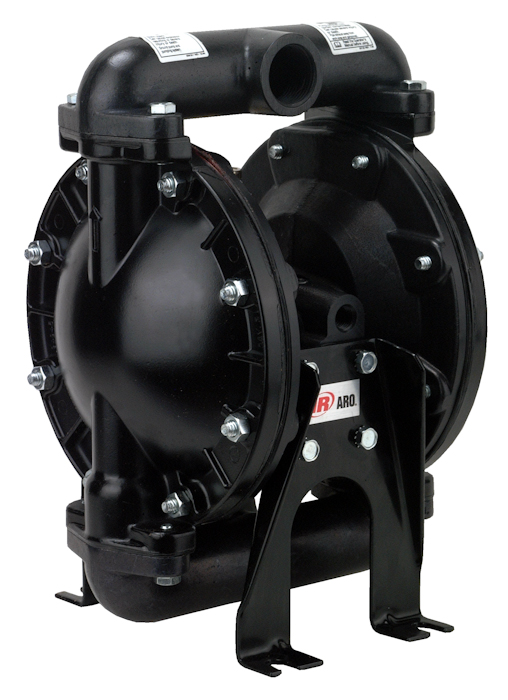

1" Inch Dewatering Pump
Category: De-Watering Transfer
Pump Specifications
Height 318 mm (12.5")
Width 217 mm (8.56")
Depth 203 mm (8")
Est. Ship Weight 8.62 kg (19 lbs)
Air Inlet 18 NPTF (1/4")
Inlet 25 mm (1") BSP
Outlet 25 mm (1") BSP
Displacement / Cycle 0.16 gal. (0.60 lit.)
Max. Fluid Pressure 20 - 120 psi (1 - 8.3 bar)
Max. Flow Rate (Flooded) 133 lpm (35 gpm)
Max. Size Solids 3.2 mm (1/8")
Our small, compact one inch pumps can be put to task in a number of different situations, including bund clearance or evacuation, IBC liquid transfer, recirculating inert liquids, and water pump duties. Easy to hook up, lightweight and versatile these pumps can be on duty in a matter of minutes.
Design Features
- Designed with TOUGHNESS in mind
- Move pump from location to location with its compact, rugged design
- Easy access to ball checks and fluid caps for maintenance and repairs

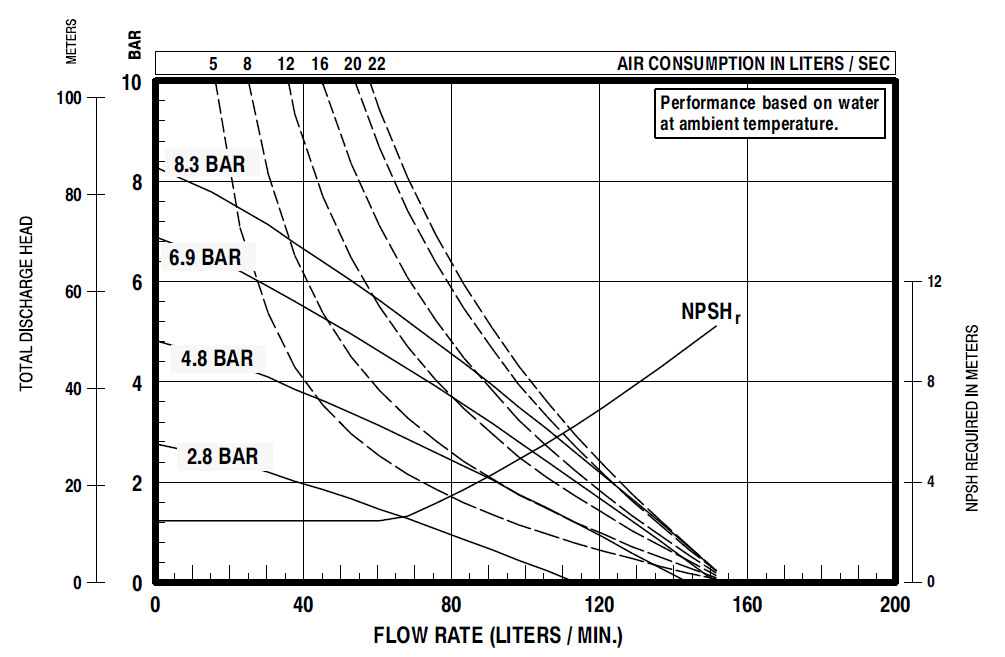

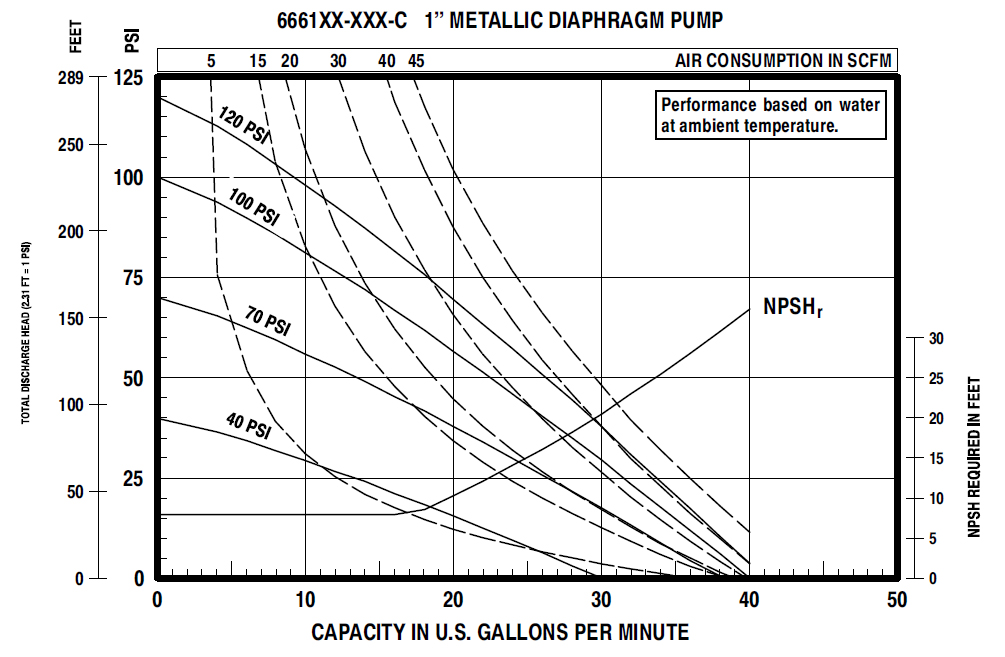

Performance Specifics
- Lube-free operation
- Max. flow rate is 133 lpm (35 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 3.2mm (1/8")
