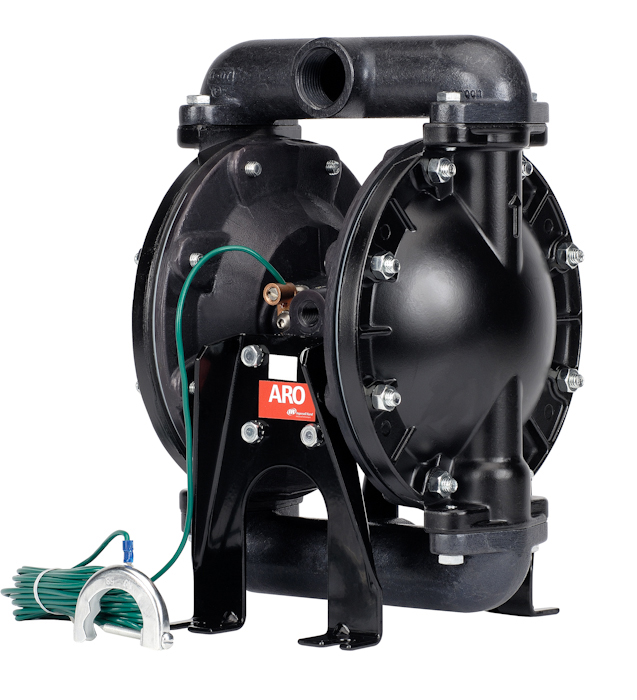

1" Inch Oil & Diesal Transfer Pump

Pump Specifications

Height 318 mm (12.5")
Width 217 mm (8.56")
Depth 203 mm (8")
Est. Ship Weight 8.62 kg (19 lbs)
Air Inlet 18 NPTF (1/4")
Inlet 25 mm (1") BSP
Outlet 25 mm (1") BSP
Displacement / Cycle 0.16 gal. (0.60 lit.)
Max. Fluid Pressure 20 - 120 psi (1 - 8.3 bar)
Max. Flow Rate (Flooded) 133 lpm (35 gpm)
Max. Size Solids 3.2 mm (1/8")

These small and lightweight pumps are excellent for the movement of any hazardous, flammable or petroleum based fluid transfer as the pump itself is intrinsically safe due to it operating under pneumatic air pressure. All our petrol pumps are ATEX rated too so can be used in any situation where safety is a must.

Design Features

  • Designed with TOUGHNESS in mind
  • Move pump from location to location with its compact, rugged design
  • Easy access to ball checks and fluid caps for maintenance and repairs

Performance Specifics

  • Lube-free operation
  • Max. flow rate is 133 lpm (35 gpm)
  • Max. air pressure is 8.3 bar (120 psig)
  • Max. solid passing is 3.2mm (1/8")
  • ATEX Rated 94/9/EC
