Spec:
PD15R-BSP-SVV-A
Height 498.1 mm
Width 377.8 mm
Depth 268.6 mm
Est. Ship Weight 8.5 kg
Air Inlet 3/4" Claw Coupling
Inlet 1½" BSP
Outlet 1½" BSP
Displacement/Stroke 2.34 L (0.617 gal.)
Max. Outlet Pressure 1.4 - 8.3 bar / 20 - 120 PSI
Max. Flow Rate (Flooded) 465.6 lpm (123 gpm)
Max. Size Solids 6.4 mm (1/4")
Max. Vertical Head 4.2 meters
ATEX 94/9/EC Rated ![]( "ATEX Rated Pump")
Per week hire:
£330.00
Extra Info:
Pump Accessories

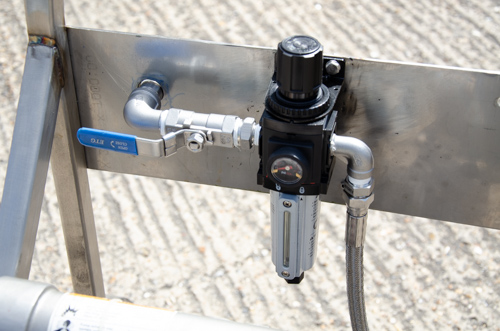

Air Regulator to
control pressure

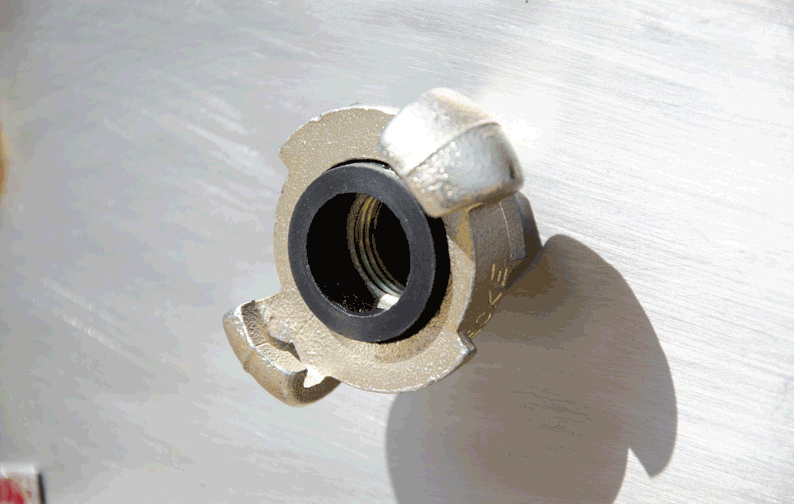

Claw Coupling to
connect your air hose
Needle Valve to
set the outlet flow

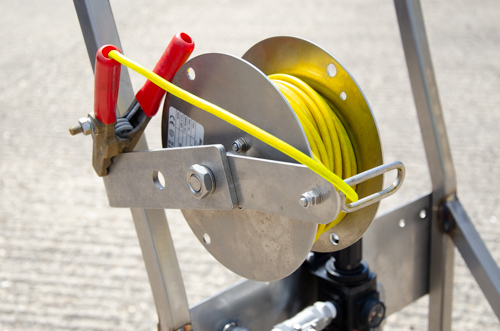

ATEX Earth Connection
Reel for your safety

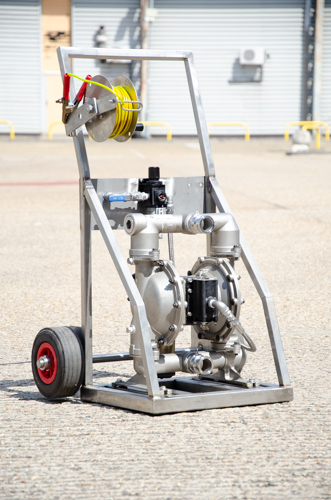

Fully stainless steel, chemically resistant, groundable pumps for the movement of hazardous and harmful material. This pump is solidly constructed, including Stainless Steel 316 wetted parts & manifolds for maximum fluid security.
Design Features
- Designed with TOUGHNESS in mind
- ATEX 94/9/EC Rated complete with ground strap
- This pump is ideal for transfer of chemicals & hazardous waste
- Fully portable, mounted on a trolley for ease of movement
- Easy access to ball checks and fluid caps for maintenance
Performance Specifics
- Lube-free operation
- Max. flow rate is 465 lpm (123 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. head pushed 4.2 meters
- 1:1 Pressure Ratio
