Spec:
PD20A-BAP-GGG-B
Height 666.8 mm
Width 501.7 mm
Depth 304.8 mm
Est. Ship Weight 41.5 kg
Air Inlet 3/4" Claw Coupling
Inlet 2" BSP / Cams
Outlet 2" BSP / Cams
Displacement/Stroke 5.3 L (1.4 gal.)
Max. Outlet Pressure 0.1 - 8.3 bar / 1 - 120 PSI
Max. Flow Rate (Flooded) 651 lpm (172 gpm)
Max. Size Solids 6.4 mm (1/4")
ATEX 94/9/EC Rated ![]( "ATEX Rated Pump")
Per week hire:
£200.00
Extra Info:
Pump Accessories

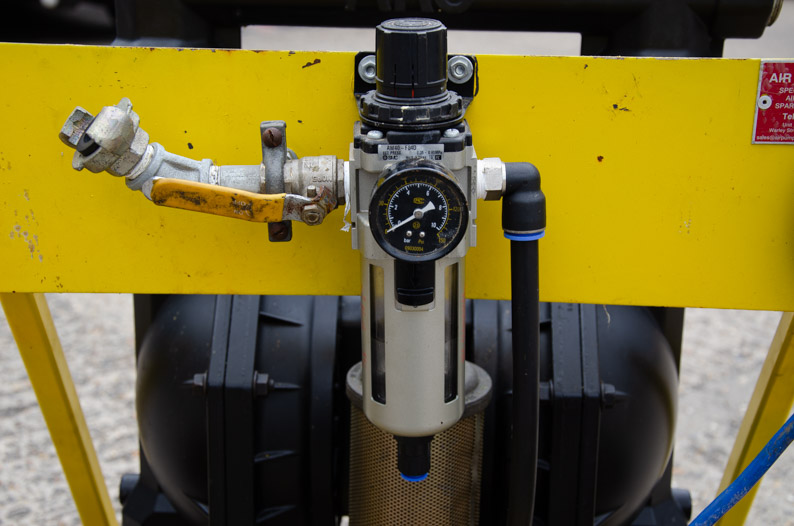

Air Regulator to
control pressure
Claw Coupling to
connect your air hose
Air line safety whip check

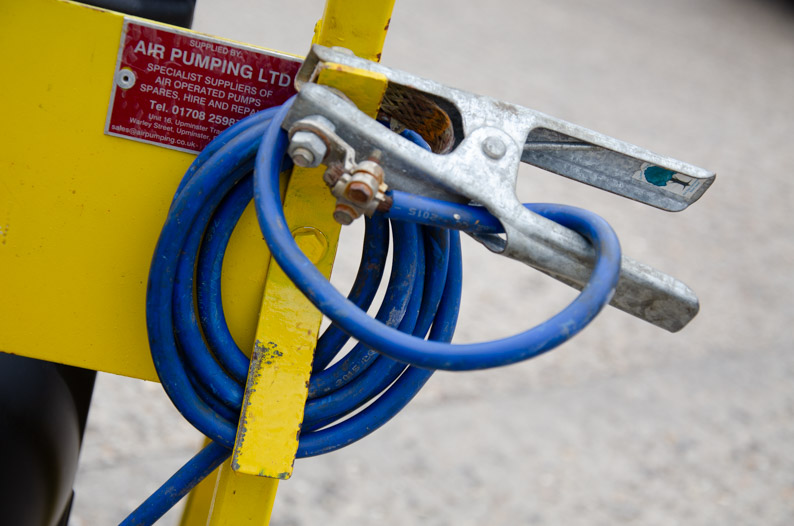

Earth Connection
strap for your safety
Maximum air inlet pressure
From the ARO EXP pump range, the PD20A is a well known reliable pump in the process industry. Solid aluminium construction paired with industry leading diaphragm seals technology developed from years of fluid transfer experience gives the ARO EXP range the leading edge.
Design Features
- Designed with TOUGHNESS in mind
- Often used for transfer, filling, recirculation and batching
- This pump is ideal for transfer of general non-hazardous fluids

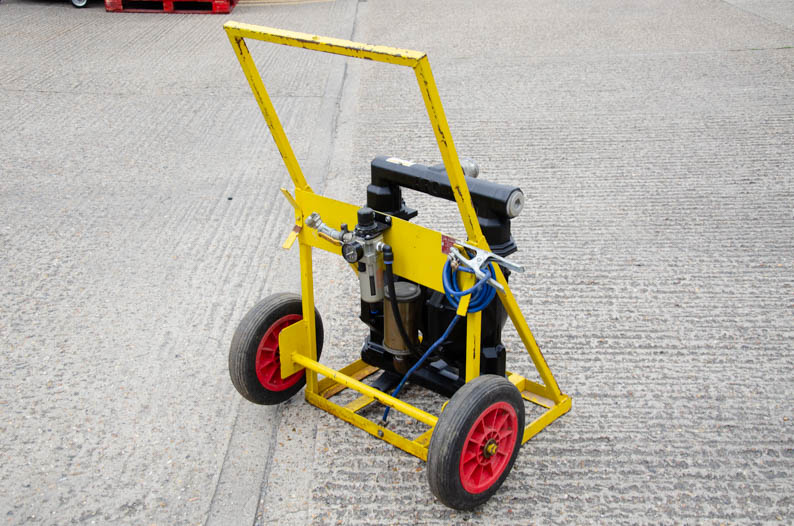

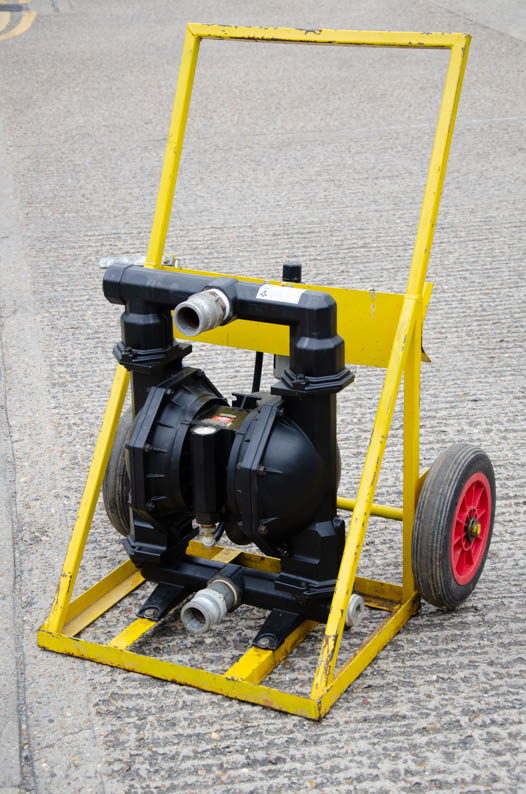

- Fully portable, mounted on a trolley for ease of movement
- Easy access to ball checks and fluid caps for maintenance
Performance Specifics
- Lube-free operation
- Max. flow rate is 651 lpm (172 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 6.4mm (1/4")
- Fully aluminium construction
