Spec:
PF20A-BCP-SAA-B
Height 666.8 mm
Width 588.8 mm
Depth 304.8 mm
Est. Ship Weight 75.4 kg
Air Inlet 3/4" NPTF
Inlet 2" BSP
Outlet 2" BSP
Displacement/Stroke 5.3 L (1.4 gal.)

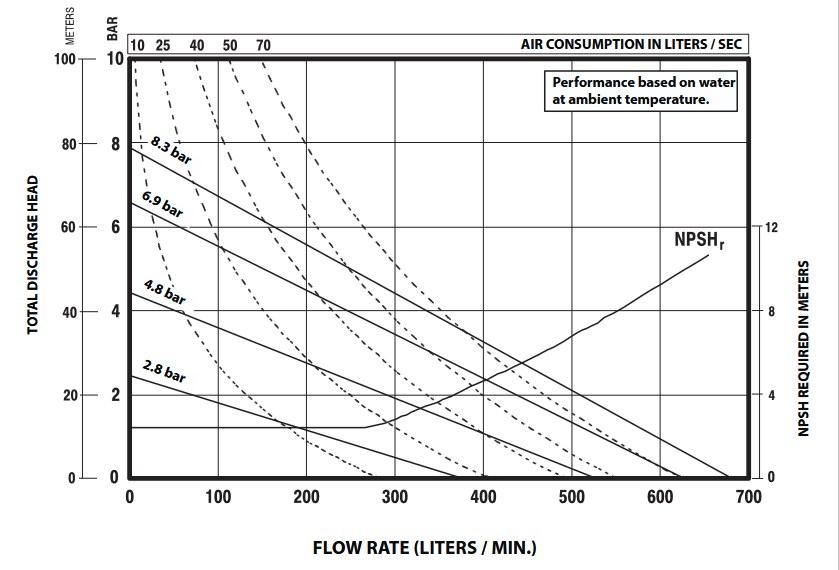

Max. Outlet Pressure 0.1 - 8.3 bar / 1 - 120 PSI
Max. Flow Rate (Flooded) 651 lpm (172 gpm)
Max. Size Solids 19 mm (3/4")
ATEX 94/9/EC Rated ![]( "ATEX Rated Pump")
Per week hire:
£420.00
Extra Info:
Pump Accessories

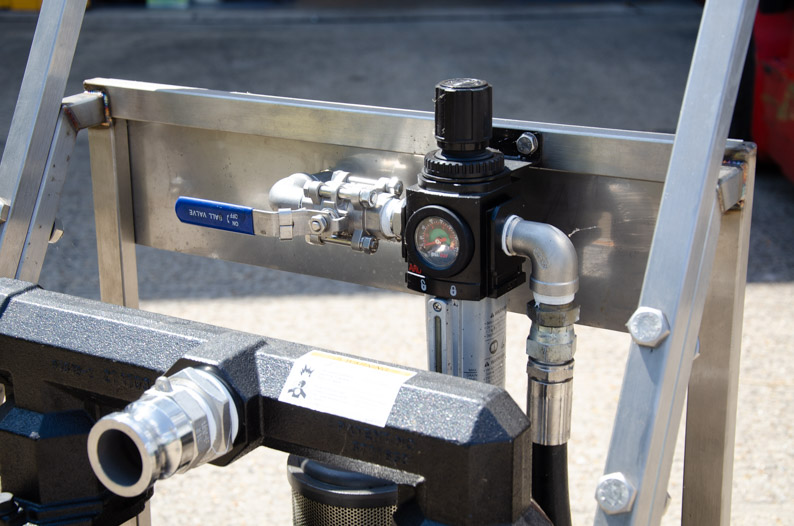

Air Regulator to
control pressure

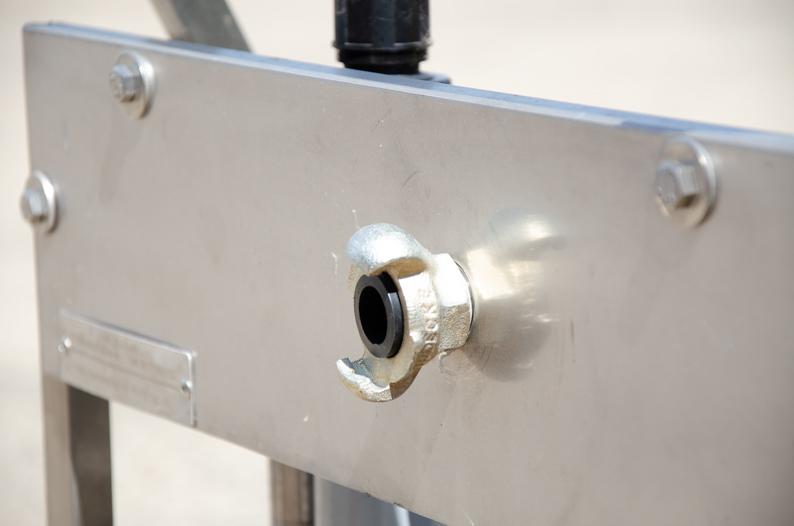

Claw Coupling to
connect your air hose

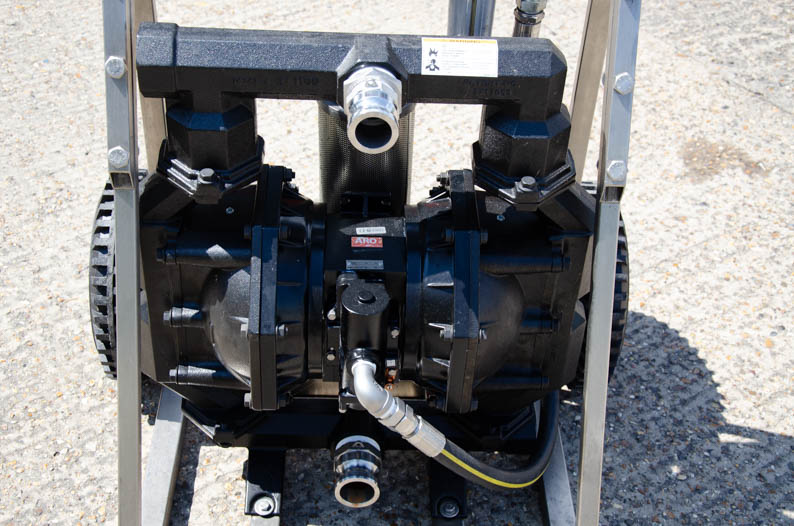

ARO air-operated flap-valve diaphragm pumps offer efficient flow rates of up to 651 l/min. This 2” flap valve pump is designed with a top inlet. It is ideal for abrasive products containing large-diameter particles using gravity to optimise the flow of liquids and solids.
Design Features
- Designed with lumps in mind!
- Capable of handling 2" semi-solids and 3/4' solid materials
- Designed to handle stringy, fibrous materials, bulky solids (suspended or not), abrasive products, slurries

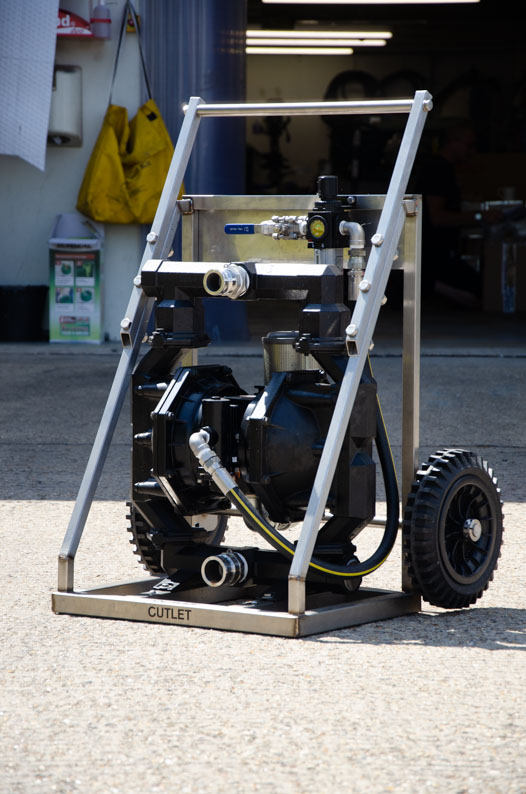

- Fully portable, mounted on a trolley for ease of movement
- ARO's patented 'Unbalanced' air valve ensures no-stall operation
Performance Specifics
- Lube-free operation
- Max. flow rate is 651 lpm (172 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 19mm (3/4")
- Fully cast iron construction
