Spec:
Height 765 mm
Width 584 mm
Depth 353 mm
Est. Ship Weight 33 kg
Air Inlet 1/2" NPTF
Inlet 2" BSP / ANSI Flange
Outlet 2" BSP / ANSI Flange
Displacement/Stroke 2.6 L (0.7 gal.)
Max. Outlet Pressure 0.1 - 8.3 bar / 1 - 120 PSI
Max. Flow Rate (Flooded) 693 lpm (183 gpm)
Max. Size Solids 6.4 mm (1/4")
ATEX 94/9/EC Rated ![]( "ATEX Rated Pump")
Per week hire:
£350.00
Extra Info:
Pump Accessories

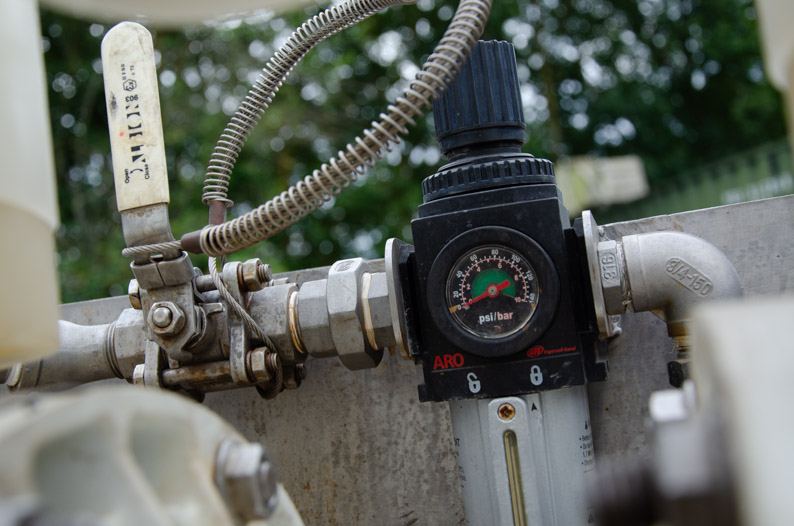

Air Regulator to
control pressure

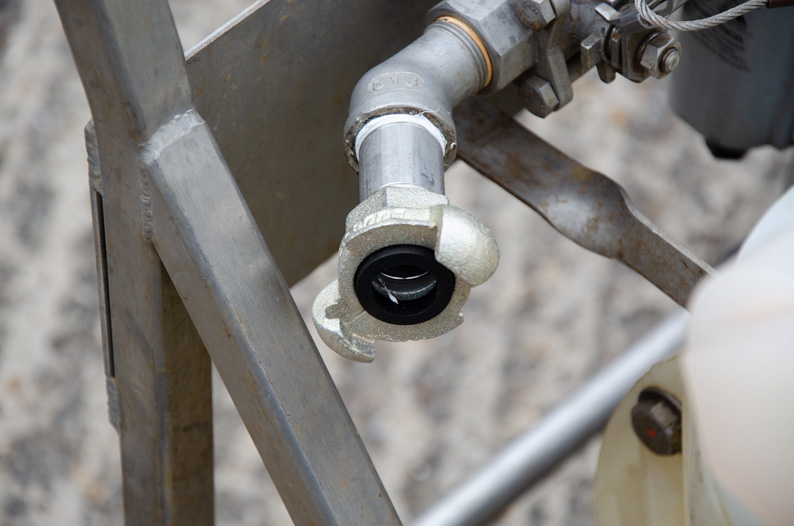

Claw Coupling to
connect your air hose

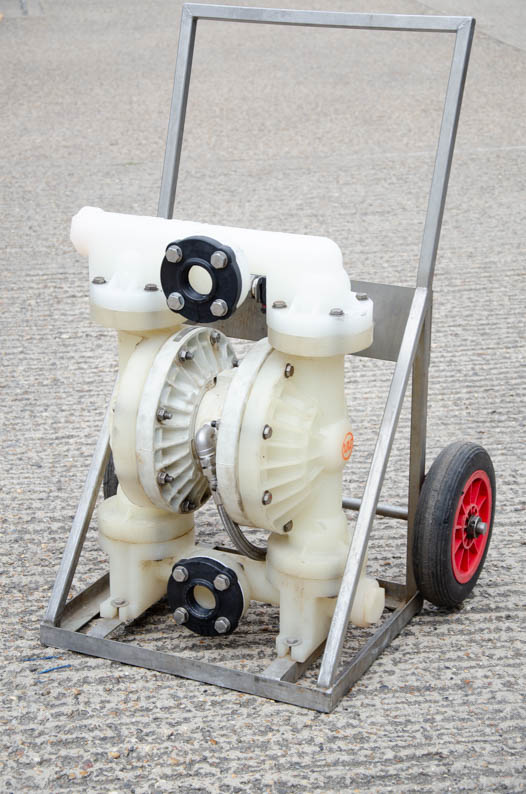

Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life. The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment.
Design Features
- Designed with fluid containment in mind

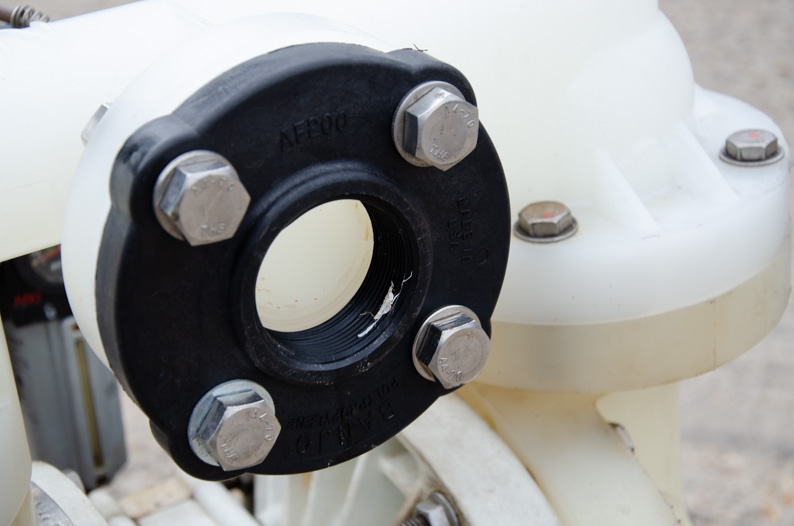

- DIN / ANSI Flanges or BSP connections
- Constructed to move hazardous chemicals
- Fully portable, mounted on a trolley for ease of movement
- High suction lift
Performance Specifics
- Lube-free operation
- Max. flow rate is 693 lpm (183 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 6.4mm (1/4")
- Fully polypropylene construction
