Spec:
666221-2A4
Height 505 mm
Width 333 mm
Depth 292 mm
Est. Ship Weight 39.6 kg
Air Inlet 1/2" NPTF

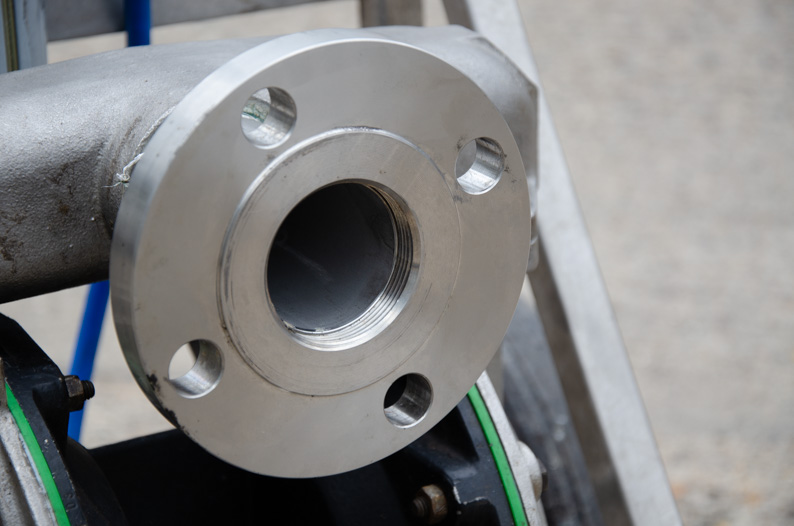

Inlet 2" BSP
Outlet 2" BSP
Displacement/Stroke 2.4 L (0.64 gal.) est.
Max. Outlet Pressure 0.1 - 8.3 bar / 1 - 120 PSI
Max. Flow Rate (Flooded) 511 lpm (135 gpm)
Max. Size Solids 6.4 mm (1/4")
ATEX 94/9/EC Rated ![]( "ATEX Rated Pump")
Per week hire:
£350.00
Pump Accessories

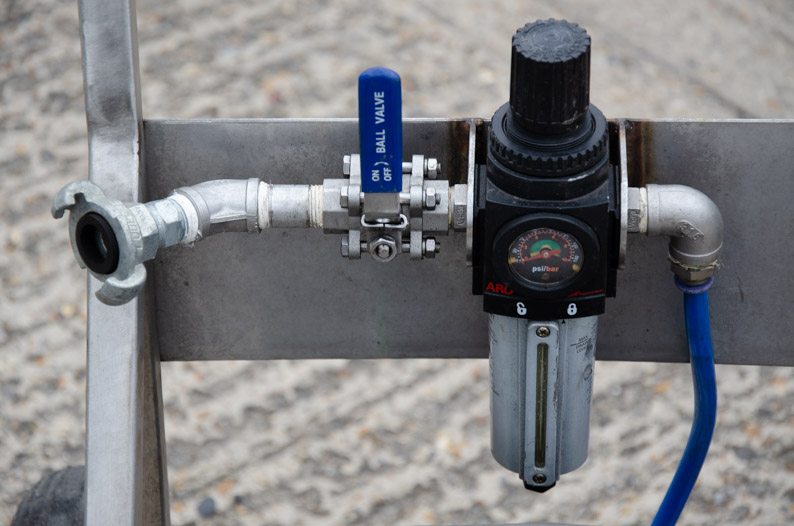

Air Regulator to
control pressure
Claw Coupling to
connect your air hose

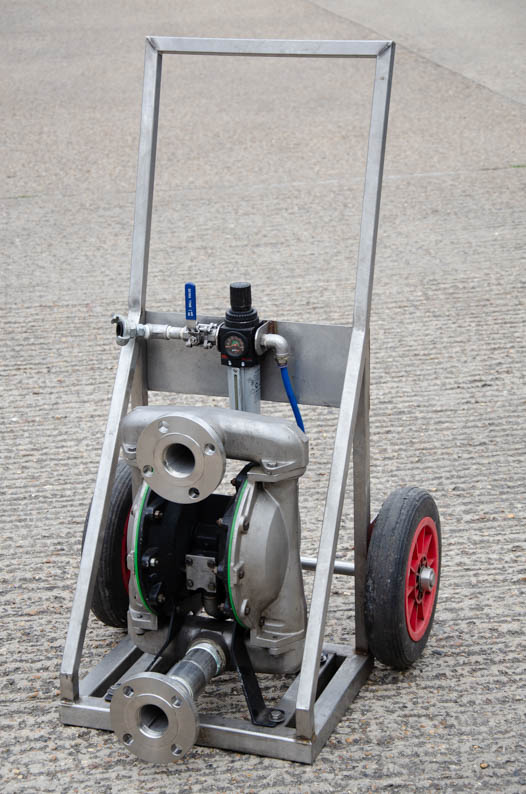

From the ARO classic pump range, the 666202 is a well known reliable pump in the process industry. Solid 316 Stainless construction paired with industry leading diaphragm seals technology developed from years of fluid transfer experience gives the ARO classic range the leading edge.
Design Features
- Designed with TOUGHNESS in mind
- Often used for transfer, filling, recirculation and batching
- This pump is ideal for transfer of general hazardous fluids & chemicals

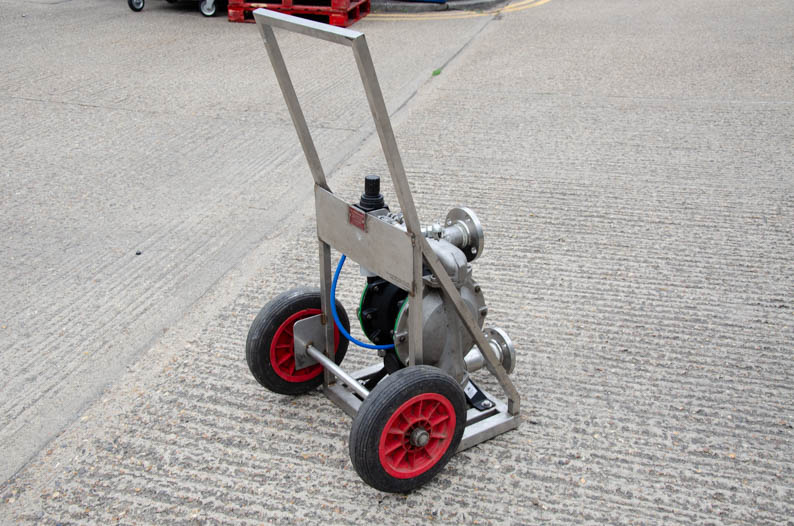

- Fully portable, mounted on a trolley for ease of movement
- Easy access to ball checks and fluid caps for maintenance
Performance Specifics
- Lube-free operation
- Max. flow rate is 511 lpm (135 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 6.4mm (1/4")
- 316 Stainless wetted path construction
