Spec:
PD20A-FSS-SVV
Height 666.8 mm
Width 492.1mm
Depth 304.8 mm
Est. Ship Weight 73.5 kg
Air Inlet 3/4" NPTF

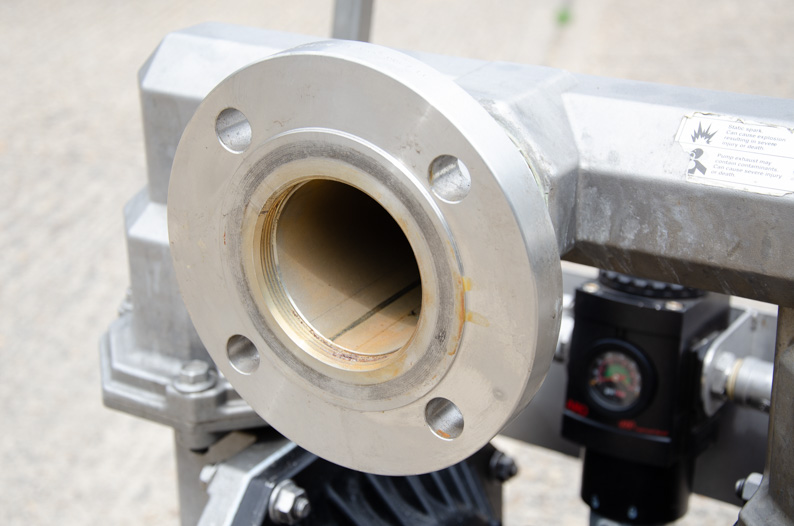

Inlet 2" BSP / ANSI Flange / Cams
Outlet 2" BSP / ANSI Flange / Cams
Displacement/Stroke 5.3 L (1.4 gal.) est.
Max. Outlet Pressure 0.1 - 8.3 bar / 1 - 120 PSI
Max. Flow Rate (Flooded) 651 lpm (172 gpm)
Max. Size Solids 6.4 mm (1/4")
ATEX 94/9/EC Rated ![]( "ATEX Rated Pump")
Per week hire:
£875.00
Extra Info:
Pump Accessories

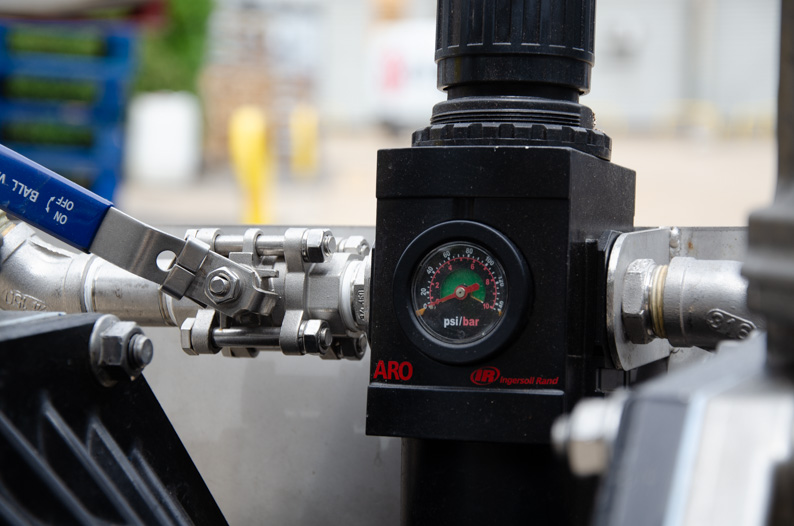

Air Regulator to
control pressure
Claw Coupling to
connect your air hose

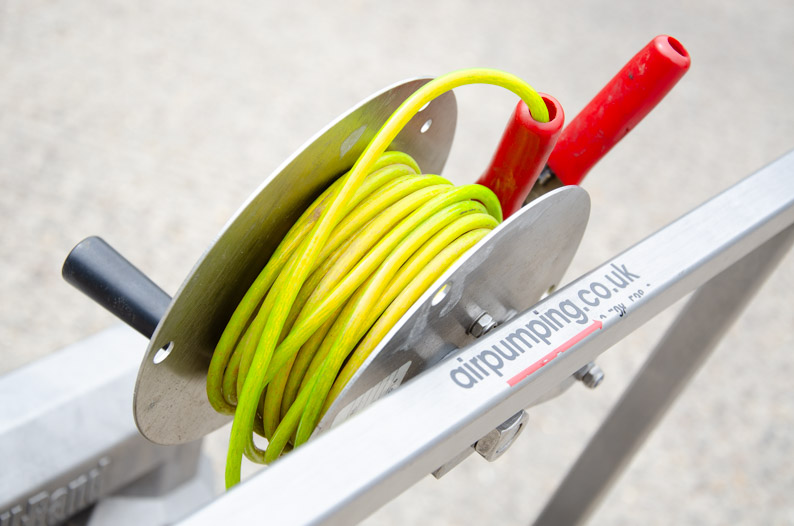

ATEX Earth Connection
Reel for your safety
From the ARO classic pump range, the PD30A is a well known reliable pump in the process industry. Solid 316 Stainless construction paired with industry leading diaphragm seals technology developed from years of fluid transfer experience gives the ARO classic range the leading edge.
Design Features
- Designed with TOUGHNESS in mind
- Often used for transfer, filling, recirculation and batching
- This pump is ideal for transfer of general hazardous fluids & chemicals

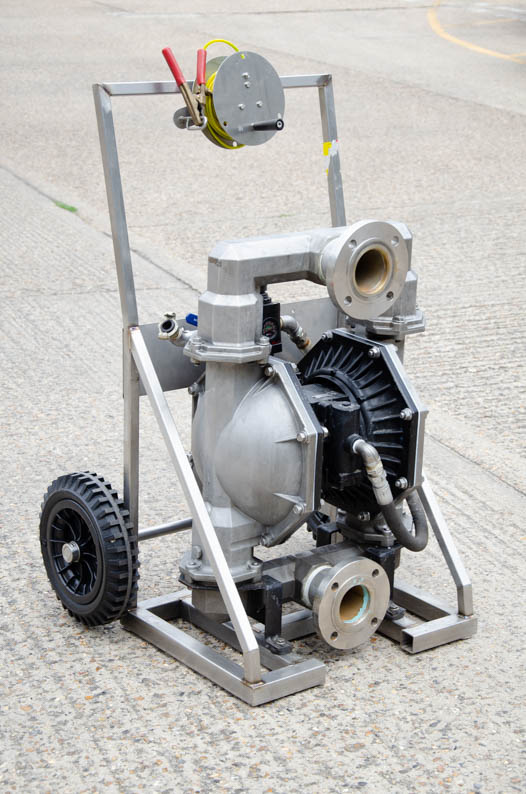

- Fully portable, mounted on a trolley for ease of movement
- Easy access to ball checks and fluid caps for maintenance
Performance Specifics
- Lube-free operation
- Max. flow rate is 511 lpm (135 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 6.4mm (1/4")
- 316 Stainless wetted path construction
